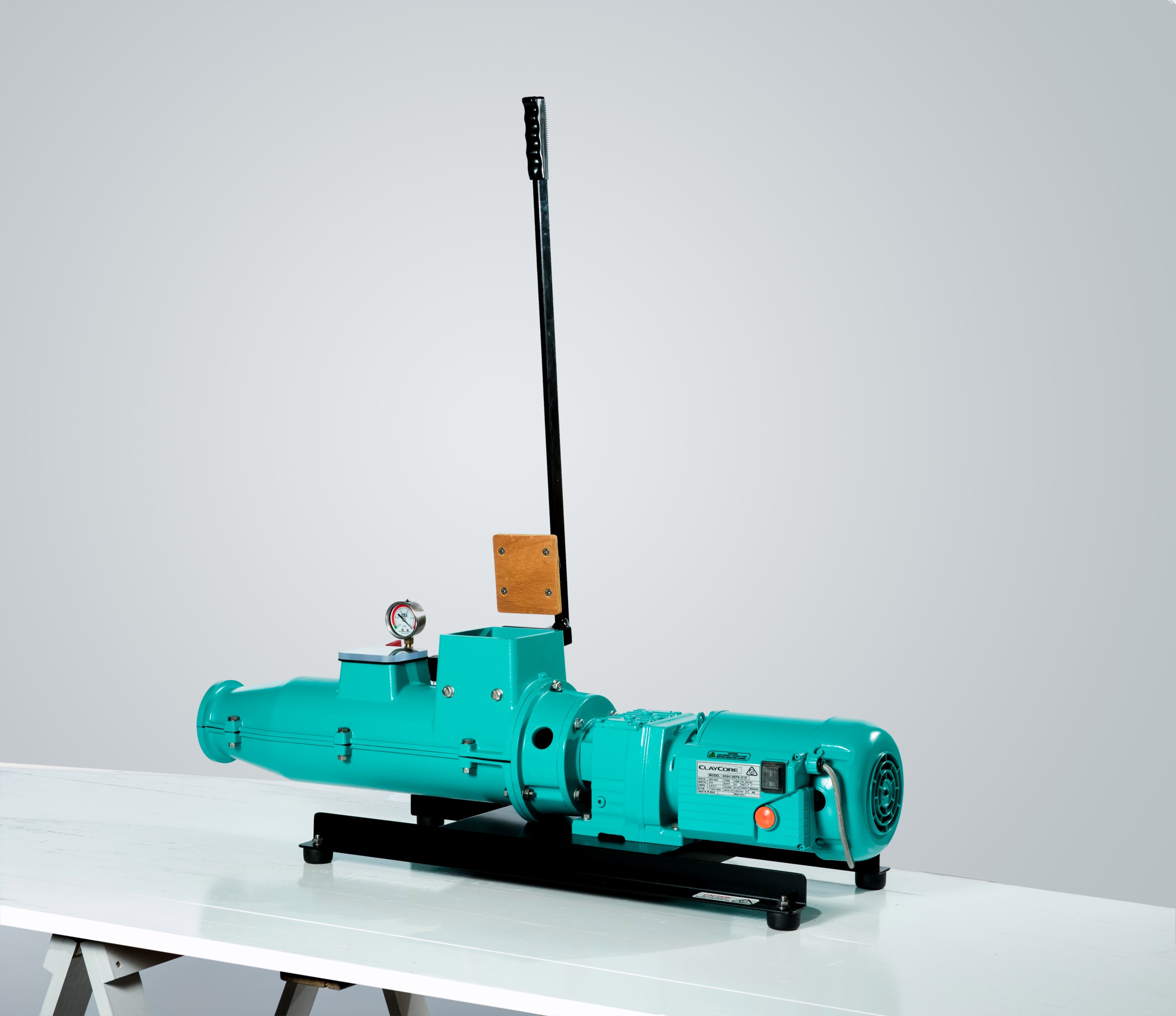

Venco 75mm De-Airing Pugmill MKII

Description

Features

• 75mm (3″) nozzle, 136mm barrel, with a 0.18kw (1/4hp) vacuum pump

• Robust construction, suitable for blending, mixing and re-working clay.

• Stainless Steel auger shaft and blades.

• Stainless steel MESH shredder screen. NOT cheap perforated plates. This allows Venco pugmills to use lower capacity motors minimising operating costs.

• Zinc plated and powder coated base.

• Sealed for life ball bearings protected by “O” ring seals.

• Cast marine grade aluminium barrel – Split longitudinally for easy cleaning.

• High capacity sliding vane vacuum pumps with single phase motors – with incorporated air / water filter.

• Model: 75mm (3 inch) nozzle , 136mm barrel de-air pug mill

• Motor: Single phase 0.37kW 240v with integral thermal overload protection

• Drive System: Industrial Gearbox

• Weight: 30kg

• Dimensions:

• Warranty period: 36 months on machine

• Warranty period: 12 months on vacuum pump
